Showing all 30 results
Improve sample processing reliability and analytical performance with the Model 4100 Water/Soil Sample Processor. This automated instrument is efficiently built to process up to 100 drinking water, wastewater, or soil samples.
Say goodbye to handling and processing samples for purge-and-trap analysis of volatile organic compounds (VOCs). The 4100 Sample Processor is designed to operate with (single or dual) Eclipse 4760 purge-and-trap sample concentrators.
The Model 4430 Photoionization Detector (PID) is a uniquely-designed gas chromatograph (GC) that selectively responds to aromatic and olefinic hydrocarbons in the presence of alkanes and other saturated hydrocarbons.
Our Model 4430 PID’s unique patented Window Sweep™ design prevents the sample stream from contacting and contaminating the lamp window.
Experience the convenience and flexibility of the Model 4450 Tandem Photoionization Detector/Flame Ionization Detector (PID/FID): a patented combination gas chromatography (GC) detector incorporating the Model 4430 PID and Model 4410 FlD.
Improve sample accuracy and save lab counter space with the Model 4551A Water Autosampler. Designed to work with our 4760 Eclipse Purge-and-Trap Autosampler, the 4551A automates VOC analysis for up to 51 clean or lightly particulated water samples.
The extremely compact 4551A Water Autosampler fits strategically under the 4760 Eclipse to save bench space. The instrument precisely transfers water samples from standard 40-mL volatile organic analysis (VOA) vials to the sparge vessel of the 4760 Eclipse for purging.
The 4760 Eclipse Purge-and-Trap Sample Concentrator uses a slim-line design and intuitive user interface to analyze volatile organic compounds (VOCs) quicker and more efficiently. Use to effectively monitor drinking water, wastewater, groundwater, storm water and more!
The Model 4760 combines our 30+ years of VOC experience in one highly-productive instrument. Users can expect faster cycle times, higher sample throughput, and exceptional reliability.
The Model 5320 Electrolytic Conductivity Detector (ELCD) excels in select detection of halogen-containing compounds, while also proving its flexibility by offering sulfur and nitrogen detection.
The Model 5320 is our third-generation ELCD. It combines three key components: a reactor assembly, cell-solvent assembly, and detector controller.
Increase efficiency and save counter space with the Model 5350 Tandem Photoionization Detector/Electrolytic Conductivity Detector (PID/ELCD), a smartly designed instrument for dual detection of aromatic and halogen compounds.
The Model 5350 Tandem PID/ELCD packs in the power of two great detectors: Model 4430 PID and Model 5320 ELCD, removing the need for separate analyses of aromatic and halogen compounds.
The Model 5360 XSD™ offers superior selectivity for detection of halogen-containing compounds.
Installed in the standard port of a gas chromatograph (GC), the Model 5360 XSD™ detects halogen-containing compounds eluting from the GC’s capillary column. This instrument is unique in the fact that it doesn’t contain radioactive sources or use organic solvents like other halogen selective detectors. This eliminates the need for catalyst tubes, solvents, resin cartridges, pumps, and transfer lines.
The Model 5383 Pulsed Flame Photometric Detector (PFPD) uses superior sensitivity and increased selectivity to easily and accurately analyze sulfur, phosphorus, and 26 other elements.
The superior sensitivity of the 5383 PFPD makes it the instrument of choice for the analysis of sulfur, phosphorus, and other elements. Its linear, equimolar response to sulfur allows selective measurement of individual sulfur species from low ppb to ppm levels, and total sulfur as the sum of individual peaks. The unique capability to obtain simultaneous sulfur and hydrocarbon chromatograms from a single PFPD detector sets it apart from other sulfur detection technologies.
Work smarter with the Model 5390 Tandem PID/XSD, which combines the power of the 4430 Photoionization Detector (PID) and the 5360 Halogen Specific Detector (XSD) to simultaneously detect halogen and aromatic compounds.
This patented tandem detector offers the production of two gas chromatograph (GC) detectors, the 4430 PID and 5360 XSD, in one efficient package. Its unique design eliminates transfer lines and uses only one detector port.
Simplicity, Flexibility, and Unmatched Reliability

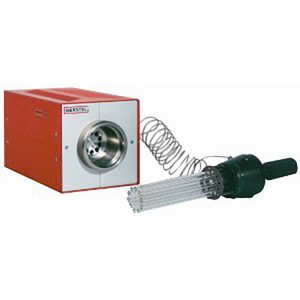

The Tube Conditioner (TC 2) enables simultaneous conditioning of up to 10 TDS tubes or up to 50 GERSTEL Twisters.
Clean and well-conditioned TD tubes and Twister are essential in order to fully take advantage of the high sensitivity of the thermal desorption technique and to achieve the best possible quality of analysis. The TC 2 operates independetly of the GC/MS system, eliminating the risk of system contamination during conditioning and keeping the GC/MS available for analytical tasks ensuring maximum productivity.
The basic platform provides 10 automated sample introduction techniques, there is no need to have a different instrument for each technique.
The basic platform provides 10 automated sample introduction techniques, there is no need to have a different instrument for each technique.
The LV-20 Standards Addition Module pairs with our Model 4551A Autosampler to improve accuracy and precision of GC-GC-MS analyses, while minimizing standard usage and decreasing laboratory costs of expensive standards.
Designed as an option for the 4551A Autosampler, the LV-20 Standards Addition Module injects programmed volumes (1, 2, 5, 10, or 20 µL) of internal standard, surrogate, or matrix spike standards to improve the accuracy and precision of GC-GC-MS analyses. The LV-20 is equipped with high-speed injection valves which inject user-programmed volumes of standard with no excess overfill volume that fixed-loop based systems require to operate. All LV-20 functions are programmed using the intuitive touchscreen and Windows® CE software on the Eclipse 4760 Purge-and-Trap Sample Concentrator.
The GERSTEL Olfactory Data Interpreter (ODI) enables fast and reliable evaluation of olfactory information including identification of unknown odor-active compounds. Chromatography data is typically acquired using a mass spectrometer / mass selective detector (MSD), a Flame Ionization Detector (FID) or a Sulfur Chemiluminescence Dectector (SCD) or a combination thereof. The chromatogram is loaded into the ODI software, which automatically recognizes the chromatogram data format before importing the data. In parallel, an olfactogram is imported with information provided by the user as he or she assessed odors eluting from the GC column in parallel with the detection process during the GC run. The olfactogram combines spoken comments from the sensory analyst and the registered intensities along a time axis. The „Olfactory Intensity Device“ (OID) conveniently enables the user to indicate the intensity of the olfactory impression as it transpires. Text comments are added using voice recognition software to translate spoken descriptors. The combined information is presented in the ODI-Software in a clear and concise overview including a chromatogram, an olfactogram and a table.
The ODP sniff port allows the sensing of compounds by the human nose as they elute from the gas chromatograph. The effluent is split as it leaves the column so that it arrives simultaneously at the nose and at the detector.
This way additional information is gained on compounds that are responsible for specific odors.
The PYRO option extends the TDU 2 to form a complete pyrolyzer that is loaded automatically by the MPS.
Simplicity, Compatibility, and Unmatched Reliability. Dedicated thermal desorption system for standard air analysis methods – valve- and cryogen free.

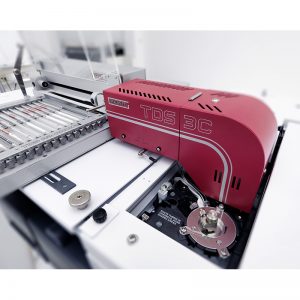

Adding the TDS A Autosampler enables your Thermal Desorption System (TDS) to perform completely automated processing of up to 20 samples using one or more analysis methods.
The TDS-A performs:
Offering more for Material Emissions-, Flavor-, and Air Analysis.

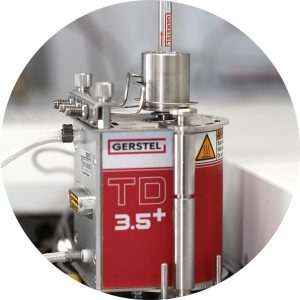

The Thermal Desorber TD 3.5+ is a flexible automated solution for thermal desorption and thermal extraction. The TD 3.5+ fits on top of any modern GC without the need for additional bench space and it is perfectly suited for the analysis material and for thermal desorption of sorbent tubes used to sample whole air. The TD 3.5+ handles standard 3.5″ tubes, as prescribed in several standard methods, in addition to GERSTEL plus tubes, which hold up to 20% more sorbent for enhanced break-through volume, improved recovery as well as improved limits of detection.
Precision – with the smallest samples with GERSTEL’s automated sample application.

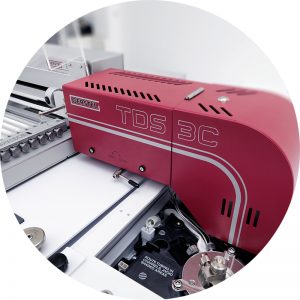

The GERSTEL Thermal Desorption System (TDS) is a flexible multi-functional system for highly sensitive determination of volatile and semi-volatile organic compounds (VOCs and SVOCs) that have been trapped on adsorbent tubes or on GERSTEL Twisters.
The TDS is also frequently used for direct thermal extraction and determination of VOCs and SVOCs from solids without sample preparation. Application examples are natural products, flavor and fragance, emssions from materials that are used indoors in buildings or in automobiles, semiconductors, polymers and packaging.
The worlds most flexible Thermal Desoprtion Instrument
The Thermal Desorption Unit (TDU 2) is a flexible automated solution for thermal desorption and thermal extraction. The TDU 2 fits on top of any modern GC without the need for additional bench space and it is perfectly suited for the analysis of gaseous, liquid and solid samples.
The TE is a preparation system for bulk samples to be analyzed using the Thermal Desorption System TDS.
A solid or gel sample is placed into the TE tube and is heated to the desired temperature. Compounds of interest are transferred into the TDS desorbent tube with a carrier gas flow. The compounds are the determined using the Thermal Desorption System (TDS).

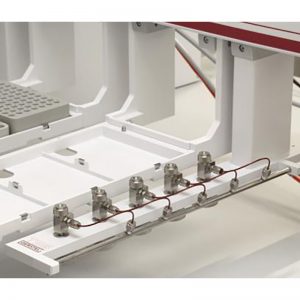

Automated spiking of standard tubes for thermal desorption (TDU/TDS)
Why cumbersome and complicated when it can be done in such as simple way: In combination with the GERSTEL MPS Robotic series, the GERSTEL Tube Spiking System (TSS) enables atuomated generation of standard tubes for Thermal Desorption analysis. Adsorbent tubes are spiked with a user defined volume of liquid standard and solvent purged with a defined flow of carrier gas as required for method calibration and validation according to international standard methods. Up to five tubes can be mounted and spiked in every TSS unit and multiple TSS unis can be mounted on the MPS for higher throughput.
The GERSTEL TSPS is designed for the preparation of solvent-free thermal desorption standards for use in air and industrial hygiene analysis.
TSPS provides an excellent alternative to commonly used ‘one-at-a-time’ classic methods. The TSPS is simple in design, speeds up routine laboratory procedures and can be easily used by staff with any level of technical training.
The TSPS can be equipped with up to six GERSTEL thermal desorption tubes that are easily attached using a specially designed connection system.
