Bettersizer 2600 Plus

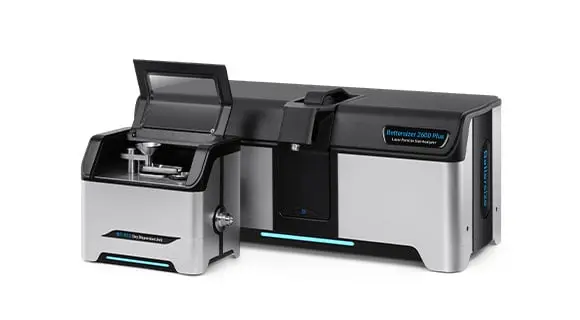

Bettersizer 2600 Plus combines laser diffraction and dual-camera dynamic imaging on one modular platform, delivering size and shape characterization across 0.02–3500 μm. Laser diffraction provides fast, repeatable particle size distributions using a 92-detector array and Mie/Fraunhofer models. Dynamic imaging captures high-speed particle images to quantify size and shape, with visual evidence for agglomerates, irregular particles, and oversized tails. With a modular design, Bettersizer 2600 Plus supports a broad selection of wet and dry dispersion units. This enables flexible setups for different sample types, volumes, and solvents, so one instrument can meet diverse applications and industries.

Description

Size and Shape in One Platform: a combination of laser diffraction and dynamic imaging

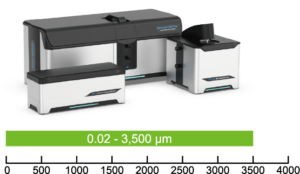

Wide Range: 0.02–3500 μm for most materials and workflows

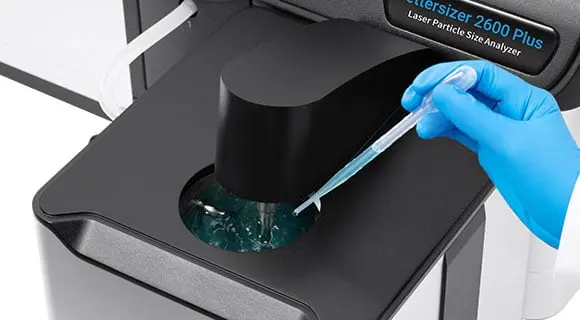

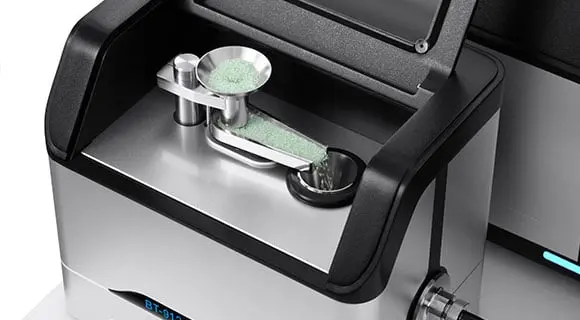

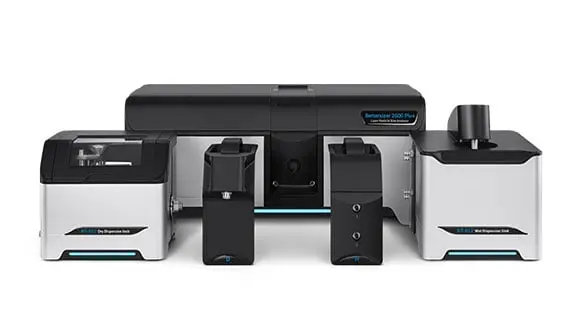

Modular Dispersion Units: flexible wet & dry setups for different samples and solvents

Advanced Laser Diffraction System

Wide-Angle Signal Collection for Reliable PSD

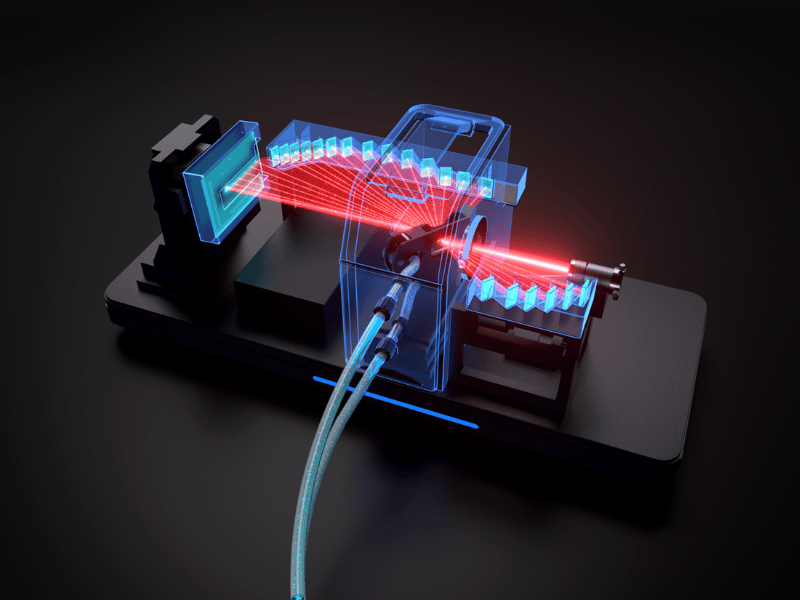

Bettersizer 2600 Plus is engineered to deliver stable, reliable particle size distributions across the wide measurement range by capturing comprehensive scattering signals. Its patented Fourier and inverse-Fourier optical system enhances signal collection and measurement robustness.

92-detector array for high-quality scattering detection
0.016°–165° angular coverage for fine and coarse particles

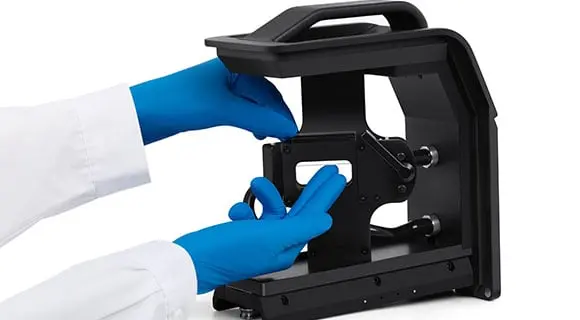

Tilted sample cell design for reduced total internal reflection and improved signal utilization

Confidence for Optically Challenging Samples

For many real-world samples, Mie-based sizing can be sensitive to unknown or variable optical properties. Bettersizer 2600 Plus features a patented refractive index measurement capability to improve measurement confidence when optics are challenging.

Handle unknown materials with greater confidence
Validate optical data at the working wavelength
Increase result confidence for optically complex samples

Superior Performance

The laser diffraction system ensures precise and reliable particle size results in compliance with ISO 13320, enabling a wide range of industries and applications to achieve new levels of performance.

Cover a wide measurement range from 0.02 to 2600 μm
Achieve accuracy better than 0.5%
Deliver repeatability better than 0.5%
Complete measurements in as little as 10 s

Dual-Camera Dynamic Imaging System

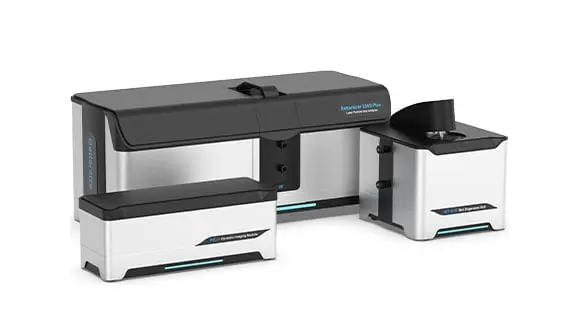

Modular Dual-Camera Imaging System

PIC-1 is a dual-camera dynamic imaging module for real-time particle image analysis. It captures high-speed particle images during measurement and converts them into size and shape results, supporting both standalone imaging and combined analysis with laser diffraction.

Size range: 2–3500 μm
Modes: Imaging-only / Combined
Magnification: 0.5×, 10×
Frame rate: 70 fps

Broadened Insight with Modular Imaging Expertise

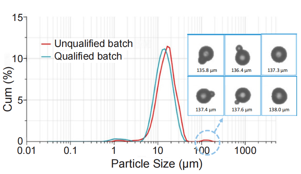

Detection of Abnormal Particle
Imaging evidence helps identify rare events, including oversized particles, agglomerates, and bubbles, improving confidence in QC and troubleshooting.

Traceability and result review
Particle images provide an auditable basis for review and verification, supporting QC, R&D, and high-reliability applications.

Combined Size and Shape Characterization
With PIC-1, laser diffraction and dynamic imaging run in one wet-dispersion workflow, delivering both particle size and shape insight in a single measurement. This combined setup extends the platform capability up to 3,500 μm.

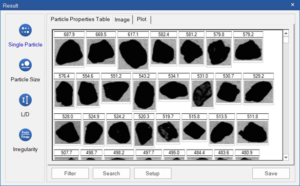

Irregular particle characterization
PIC-1 captures real-time particle images to support detailed single-particle analysis. By reporting up to 32 size and shape parameters, it enables deeper understanding of particle shape and characteristics.
