Showing all 35 results
The Agitator/Stirrer for the GERSTEL MultiPurpose Sampler (MPS) can either operate in agitation or stirring mode using conventional magnetic stir bars. Stirring helps efficiently mixing heterogeneous or viscous samples, accelerates equilibration for headspace sampling and extends the lifetime of SPME fibers.
Performing Solid Phase Extraction (SPE) manually can be time consuming and nerve-racking, especially when recovery and reproducibility are lacking due to sample variability. If SPE can be reliably automated, it becomes a much more efficient and reproducible process.
The Sample ID (SID) 1D/2D Barcode reader for the GERTEL MultiPurpose Sampler (MPS) uses a dual camera setup and image analysis for positive identification of samples. SID can be connected to a PC or via LAN using USB connectivity.
Fully implemented into the MAESTRO software, SID enables independent sample logging or fully integrated sample ID transfer to the data file with multiple user-defined options for sample verification and the handling of deviations.
The GERSTEL Cooled Agitator is a modified version of the standard 6 position agitator used with the MultiPurpose Autosampler. It incorporates a Peltier based cryostat that allows samples can be cooled down to 10C and is also useful when stable ambient temperature are required.
The GERSTEL CTS is used for cryogenic trapping and concentration of analytes. The CTS enables improved separation and lower detection limits. Following the concentration step, analytes are introduced to the GC column using a highly accurate temperature program. The CTS can be used in a single-column GC system placed at the head of the column or between the pre-column and the analytical column in a multidimensional system in order to refocus analytes prior to analytical separation.
Extraction in Seconds
DPX is a fast and efficient SPE technique used for a wide rnge of applications such as drugs of abuse, therapeutic drug monitoring, comprehensive screening, pharmacology studies (NNK), as well as pesticides in fruit and vegetables. DPX is based on unique and patented SPE devices: Pipette tips that incorporate loosely contained sorbent material, which is mixed with the sample solution. Turbulent air bubble mixing creates a suspension of sorbent in the sample ensuring optimal contact and highly efficient extraction. The extraction is performed much faster than with traditional SPE techniques.

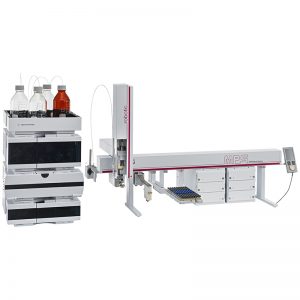

Mass Spectrometers are continuously being improved and have become so sensitive that carryover is constantly an issue. To meet today’s requirements for fast, clean and reproducible LC/MS injection; GERSTEL is now offering the LC/MS-Tool for the GERSTEL MultiPurpose Sampler MPS robotic.
The GERSTEL MultipurposeSampler (MPS) and its versatile sample preparation modules makes online sample preparation directly before injection possible. Its modular design means that many processes can be adapted and implemented.
Automated Filtration Using The MPS
Suspended particles and matrix material in a sample can significantly influence analysis results and system suitability. Removing particulate matter from a sample or extract prior to analysis is therefore critical for many GC/MS- and LC/MS analysis methods, particularly when large series of samples must be analyzed automatically.
GERSTEL GRAPHPACK technology was designed to provide leak-free, low dead volume, inert connections quickly and reliably for any type of connection used for gas chromatography. The same technology is used for inlet and detector connections as well as for column connections (with or without make-up gas) and multiple column splitters. GRAPHPACK fittings exist for almost all GC inlets and detectors, so a laboratory with multiple brands of GCs can use the same ferrules, adapters, and nut for all connections needs.
In LC/MS, we work hard to reach the goal of achieving the perfect LC separation and combining it with the most efficient ionization and lowest achievable MS detection limits for our analytes.
The LC separation may require a certain pH and polarity range of the eluent, while analyte ionization in the LC/MS ionization source requires yet another pH, a different buffer – or even derivatization of the analyte for best possible efficiency or optimized spectral information. How to optimize both? The logical answer is to take the effluent from the perfect LC separation and optimize it for MS analysis.
GERSTEL SPEXOS expands your sample preparation portfolio with online SPE. Compared with sandard SPE, SPEXOS relies on much smaller cartridges with only 50 mg of sorbent, enabling a significant miniaturization of the entire process: Much smaller sample amounts are needed to reach required detection limits and much less solvent is needed for analyte elution reducing cost, simplifying logistics, and increasing method sensitivity.
The GERSTEP MPS configured as Headspace Autosampler provides the analyst with a high productive tool for performing GC Headspace analysis. The MPS is perfectly suited for routine analysis for R&D applications that demand a higher degree flexibility.
GERSTEL provides a wide range of cooled trays and stacks for the MPS Robotic series either as part of an analysis system or as an off-line WorkStation. Trays and stacks available with Peltier cooling or cryostatic cooling covering a temperature range from 4 to 70C.
The GERSTEL MultipurposeSampler (MPS) and its versatile sample preparation modules makes online sample preparation directly before injection possible. Its modular design means that many processes can be adapted and implemented.
The MAESTRO software operates all GERSTEL modules and system solutions in a simple and efficient manner. MAESTRO can be operated as stand-alone software or fully integrated with the Agilent Technologies ChemStation. Just one method and one sequence table runs the complete system from Sample Prep and Sample Introduction to GC/MS or LC/MS analysis. Set-up is performed in a very simple manner: By mouse-click.
Water analysis can be complicated if the sample contains a large proportion of suspended substances and foreign particles.
Membrane extraction promises simplification in this case: a novel procedure for sample preparation developed by the Environmental Research Centre Leipzig-Halle, which has been automated by GERSTEL.
MOSH/MOAH Data Analysis is a powerful software package for the evaluation of chromatograms produced during MOSH/MOAH analytics.
The MultiPurposeSamplers MPS are multi-functional autosamplers with a broad range of applications.
The MultiPurposeSamplers MPS are multi-functional autosamplers with a broad range of applications.
It combines the benefits of an MPS Robotic with those of an MPS Robotic Pro.
The multi-functional autosampler with a broad range of applications.
The most advanced column switching system available, providing unsurpassed flexibility for gas chromatographic analysis.
The multidimensional heartcutting chromatography system from GERSTEL finally does away with the complexity and operational difficulties of the past. The system is based on advanced electronic pneumatic control EPC and GERSTEL GRAPHPACK technology allowing unprecedented ease of use and reproducibility.
Fully automated solvent evaporation integrated with your sample preparation.
The GERSTEL Multi-Position Evaporation Station (mVAP) performs solvent evaporation enabling automated sample concentration for lower detection limits as well as solvent exchange for improved chromatography and LC/MS ionization. mVAP is an option for the GERSTEL MultiPurpose Sampler (MPS): Up to 196 samples in standard autosampler vials can be concentrated in batches of up to six.
The GERSTEL Olfactory Data Interpreter (ODI) enables fast and reliable evaluation of olfactory information including identification of unknown odor-active compounds. Chromatography data is typically acquired using a mass spectrometer / mass selective detector (MSD), a Flame Ionization Detector (FID) or a Sulfur Chemiluminescence Dectector (SCD) or a combination thereof. The chromatogram is loaded into the ODI software, which automatically recognizes the chromatogram data format before importing the data. In parallel, an olfactogram is imported with information provided by the user as he or she assessed odors eluting from the GC column in parallel with the detection process during the GC run. The olfactogram combines spoken comments from the sensory analyst and the registered intensities along a time axis. The „Olfactory Intensity Device“ (OID) conveniently enables the user to indicate the intensity of the olfactory impression as it transpires. Text comments are added using voice recognition software to translate spoken descriptors. The combined information is presented in the ODI-Software in a clear and concise overview including a chromatogram, an olfactogram and a table.
The GERSTEL PFC automatically collects compounds after gas chromatographic separation. The PFC is equipped with six sample traps and one waste trap. Traps are available in 1 µl or 100 µl volumes.
For optimum compound recovery, the PFC can be equipped with optional LN2 trap cooling or cryostatic trap cooling systems.
quickMix for the GERSTEL MPS Robotic series enables extremely fast and efficient mixing nad extraction of samples as part of the automated sample preparation process.
The mixing power is comparable to that of vortex mixing. Samples are agitated in a special tray on the module, depending on the vial size holding up to 6 samples at a time. The tray can be exchanged to operate with 2 mL, 4 mL, 10 mL and 20 mL vials. If needed, quickMix can be configured with a heated tray.
Gas chromatography (GC) experts rely on sharp peaks and baseline resolution to provide accurate answers. To perform chromatographic analysis of real-world samples, analysts often must deal with either complex sample types such as essential oils and petroleum fractions, or complex matrices like biological fluids, foods, sludge, or polymers. Once the sample has been prepared for analysis, separation of all the individual compounds present by means of a single chromatographic separation can be challenging due to the compounds having different ranges of polarity, boiling point, solubility, MW, and concentration. It is therefore necessary to use innovative yet robust techniques that go beyond using a single chromatographic dimension to achieve compound separation.
Solid Phase Micro Extraction (SPME) is widely used technoque for extraction and concentration of VOCs and SVOCs combined with GC/MS. SPME is especially useful in the food, flavor and beverage industries and for environmental monitoring.
The MPS Robotic is a highly efficient GC/MS and LC/MS autosampler with extended robotic functionality. The MPS robotic provides reliable and efficient processing of complex tasks. Syringes are mounted in individual syringe modules, which be exchanged automatically within a running sequence when using the MPS RoboticPro for maximum flexibility.
Twister® Back Extraction as MPS Option
The combination of Twister technology (SBSE; Stir Bar Sorptive Extraction) with elution and subsequent chromatographic detection can be powerful and reproducible process for the determination of organic analytes from aqueous samples; e.g. PAH, psticides, herbicides or phenols.
Standard autosampler vials are placed in the balanec by the MPS and liquid samples, stnadards, reagents or diluents added, weighed and registered separately. For each sample, mulitple liquid additions can be defined by mouse-click in the MAESTRO Software.
Flexible and reliable sample preparation robot providing efficient automation of your laboratory processes.
The GERSTEL MuliPurpose Sampler (MPS) provides a wide range of capabilities in one robotic system. The MPS WorkStation is a bench-top version of the MPS, independent of the GC/MS or LC/MS analysis system. The WorkStation can be configured as Single Head or Dual Head version enabling it to perform a range of functions to meet almost every requirements in terms of performance and throughput. The MPS WorkStation provides complete flexiblity. In combination with the GERSTEL MAESTRO software, the MPS WorkStation offers simple set-up and advanced automation capabilities.
